Engine Injector Removal Puller Tool Kit - Replacement T10133, SF0053

Instructions:
- Select a puller attachment, slide it onto the injector, use puller screw or slide hammer to safely remove injector

- Once injector is pulled, remove old seal using a small pick or flathead screwdriver (not included) carefully to not damage injector groove surface

- To fit the new seal, place included assembly cone on tip of the injector and slide new seal onto assembly cone, use included assembly sleeve to slide seal onto injector

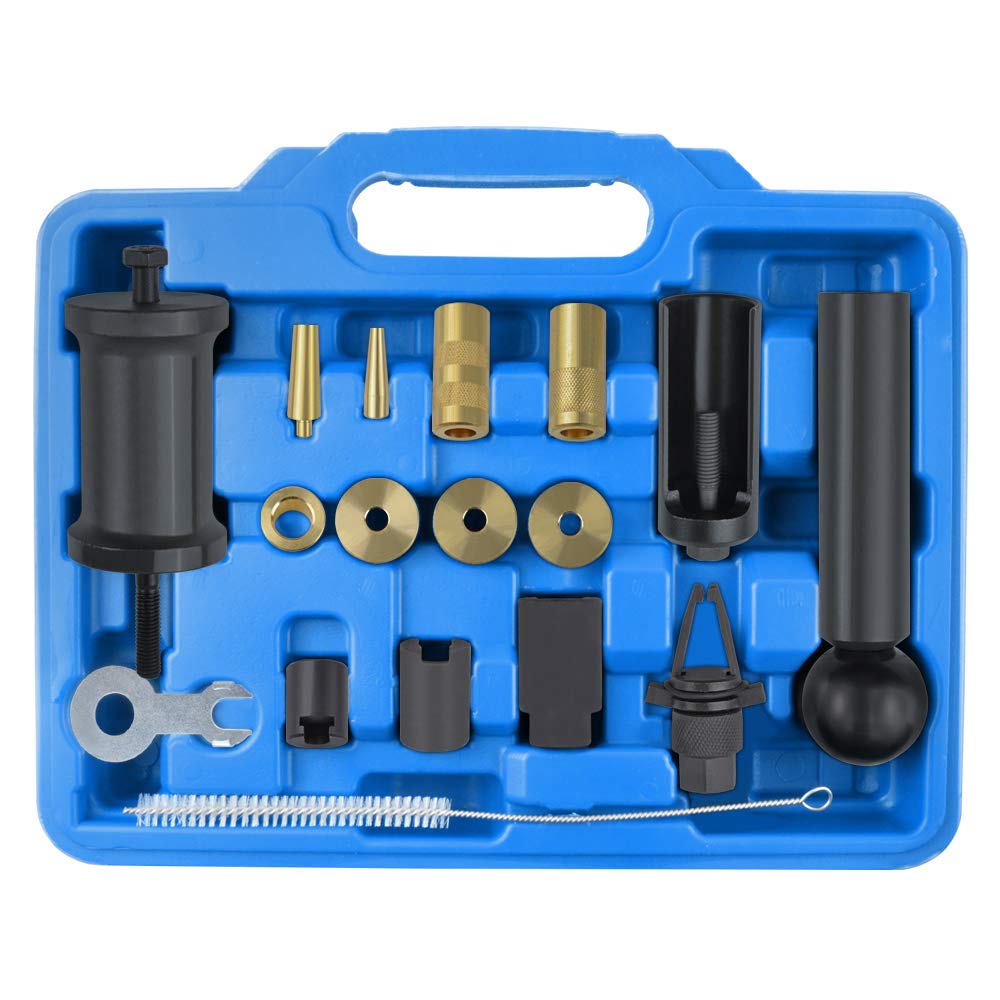

- Additional tools included for cleaning and installing Fuel Injector Puller Tool Kit Included:
? Ball type insertion adaptor

? Injector puller large cup type for FSI type injectors.23mm x 76mm

? Injector puller small cup type for FSI type injectors.14mm x 40mm

? Injector puller two legs (thin) for FSI type injectors.19mm x 20mm

? Two cylindrical adaptors. 12mm I.D. 13mm I.D. 40mm long ? Two tapered cone adaptors. 27mm x 4mm taper, 35mm x 7mm taper

? Three knurled stepped adaptors 24mm

? One threaded cup type pulling adaptor. 15mm x 10mm

? One threaded cup type pulling adaptor. 10mm x 8mm

? One spacer bush 19mm O.D x 12mm I.D. x 12mm long

? Slide hammer puller

? Disconnect key 9.5mm
